SPIN L1
Very high efficiency single pulley with swivel Description Designed for maximum simplicity in setting up hauling or load deviation systems and tyroleans for work at height, rescue and tree care: - triple-action opening of the moving side plate is quick and easy, even with gloves - the rope can be installed with the device connected to the anchor. - red mark provides a visual warning when the moving side plate is unlocked - special side plate design protects the rope path Optimal efficiency and easy handling: - large diameter sheave mounted on sealed ball bearings for excellent efficiency - swivel allows pulley to be oriented under load - swivel accepts up to three carabiners and allows the use of ropes and slings to facilitate maneuvers. Specifications Weight: 290 g Certification(s): CE EN 12278, NFPA 2500 Pulley General Use, UIAA, UKCA, XF 494 : FZL-H-T9.5/13 Material(s): aluminum, stainless steel, nylon Min. rope diameter: 7 mm Max. rope diameter: 13 mm Sheave type: sealed ball bearings Sheave diameter: 38 mm Maximum working load: 4 x 2 = 8 kN Breaking strength: 36 kN Efficiency: 95 %
SPIN L2
Very high efficiency double pulley with swivel Description Designed for maximum simplicity when setting up haul systems or tyroleans for work at height or rescue: - triple-action opening of the moving side plate is quick and easy, even with gloves - the rope can be installed with the device connected to the anchor. - red mark provides a visual warning when the moving side plate is unlocked - special side plate design protects the rope path Optimal efficiency: - large diameter sheaves mounted on sealed ball bearings for excellent efficiency Parallel-mounted sheaves and auxiliary attachment point for setting up various types of complex haul systems Easy handling: - swivel allows pulley to be oriented under load - swivel accepts up to three carabiners - swivel and auxiliary attachment point allows the use of ropes and slings to facilitate maneuvers. Specifications Weight: 480 g Certification(s): CE EN 12278, NFPA 2500 Pulley General Use, UIAA, UKCA, XF 494 : FZL-H-T9.5/13 Material(s): aluminum, stainless steel, nylon Min. rope diameter: 7 mm Max. rope diameter: 13 mm Sheave type: sealed ball bearings Sheave diameter: 38 mm Maximum working load: 8 kN (3 kN per strand, more information in the Instructions for Use) Breaking strength: 36 kN Efficiency: 95 %
RESCUE
High strength, very high efficiency pulley Description For rescue professionals Designed to handle heavy loads or for intensive use Large diameter sheave mounted on sealed ball bearings for excellent efficiency Accepts up to three carabiners to facilitate use Available in two colors: red and black Specifications Rope compatibility: 7 to 13 mm Sheave diameter: 38 mm Ball bearings: yes Efficiency: 95 % Maximum working load: 4 kN x 2 = 8 kN Weight: 185 g Certification(s): CE EN 12278, NFPA 2500 General Use, UKCA, XF 494: FZL-H-T 9.5/13
TWIN RELEASE
Releasable double progress capture pulley for haul systems Description Double progress capture pulley with handle to release cam: - Ergonomic handle for easy release of the cam - Brake integrated into main moving side plate allowing comfortable and precise control when lowering heavy loads - Cam can be locked in the open position to easily feed slack - Toothless cam helps preserve the rope and allows for easy transition from lowering to hauling and vice-versa Efficiency is optimized for 4:1 haul systems: - Large-diameter sheave mounted on sealed ball bearings for excellent hauling efficiency - Main faceted sheave with single-direction rotation provides excellent efficiency when hauling and adds friction zones with the rope for additional braking when lowering heavy loads (more information in the Instructions for Use and in the technical tips at www.petzl.com). - Parallel-mounted sheaves and auxiliary attachment point for setting up various types of complex haul systems Easy to use: - Triple-action opening of the moving side plates is quick and easy, even with gloves - Red indicators provide a visual warning when the side plates are unlocked - The rope can be installed with the device connected to the anchor - Hole in the handle for installation of a remote control cord Facilitates operations, thanks to the swivel: - Allows pulley to be oriented under load - Accommodates up to three carabiners - Swivel and auxiliary attachment point allows the use of ropes and slings for easier rigging Specifications Weight: 800 g Material(s): Aluminum, stainless steel, nylon Certification(s): CE EN 567, CE EN 12278 partial*, NFPA 2500 Pulley General Use, NFPA 2500 Rope Grab Technical Use, UKCA, XF 494: FZL-H-T 9.5/13, XF 494: FZL-Z-Q 9.5/13 * Meets performance requirements of the EN 12278 standard System Certification(s): ANSI Z359.4 Synthetic Rope Tackle Block (more information in the Instructions for Use) Min. rope diameter: 8 mm Max. rope diameter: 13 mm Sheave type: Sealed ball bearings Faceted Sheave Diameter: 40 mm Sheave diameter: 38 mm Efficiency: 95 % Maximum Working Load: 280 kg (more information in the Instructions for Use and in the technical tips at www.petzl.com) Breaking strength of the auxiliary attachment point: 22kN Breaking strength: 36kN
MINDER
High strength, very high efficiency Prusik pulley Description Special side plates designed for use with a Prusik friction hitch in progress capture systems Large diameter sheave mounted on sealed ball bearings for excellent efficiency Accepts up to three carabiners to facilitate use Specifications Rope compatibility: 7 to 13 mm Sheave diameter: 51 mm Ball bearings: yes Efficiency: 97 % Maximum working load: 4 kN x 2 = 8 kN Weight: 295 g Certification(s): CE EN 12278, NFPA 2500 General Use, UKCA, XF 494: FZL-H-T 9.5/13
TWIN
High strength, very high efficiency double Prusik pulley Description Special side plates designed for use with a Prusik friction hitch in progress capture systems Parallel mounted sheaves and auxiliary attachment point for creating different types of hauling systems, including the most complex Large diameter sheaves mounted on sealed ball bearings for excellent efficiency Accepts up to three carabiners to facilitate use Specifications Rope compatibility: 7 to 13 mm Sheave diameter: 51 mm Ball bearings: yes Efficiency: 97 % Maximum working load: 2 x 3 kN x 2 = 12 kN Weight: 450 g Certification(s): CE EN 12278, NFPA 2500 General Use, UKCA, XF 494: FZL-H-T 9.5/13
PRO TRAXION
Very high-efficiency, drop-resistant progress-capture pulley with swivel Description Drop-resistant and easy to operate: - Triple-action opening of the moving side plate is quick and easy, even with gloves - Rope can be installed when the pulley is connected to the anchor - Red indicator provides a visual warning when the moving side plate is unlocked - Special side plate design protects the rope path Designed for hauling heavy loads: - Large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency - Swivel allows pulley to be oriented under load Versatile: - Swivel and auxiliary attachment point allow the use of carabiners, ropes, and slings for easier rigging - Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty - May be used as a simple pulley by locking the cam in the raised position - Auxiliary attachment point can be used to set up a haul system - Hole in the cam for installation of a remote control cord Specifications Weight: 295 g Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab Material(s): Aluminum, stainless steel, nylon Min. rope diameter: 8 mm Max. rope diameter: 13 mm Sheave type: Sealed ball bearings Sheave diameter: 38 mm Breaking strength - pulley: 11.5 kN x 2 = 23 kN Breaking strength - rope clamp: 4 kN Efficiency: 95 %
REEVE
Carriage pulley for rescue on a tensioned highline Description An integrated solution designed to simplify setting up rescue systems on tensioned highlines: the REEVE pulley limits the number of connectors and the height of the system, thanks to its compact design. Operations and efficiency are optimized: - Triple-action opening of moving side plates, possible even with gloves - Red indicators provide a visual warning when the side plates are not correctly locked Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency - Possible to rig the system before installing it on the main line Multiple configurations and connections are possible: - System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance - Pulley can be used in a haul system - Hole design allows ropes or slings to be threaded for direct connection - 19 mm holes allow locking sleeves of most carabiners to pass through - The odd number of attachment holes enables the system to be centered and balanced - Up to three people can be connected at the same time Specifications Weight: 650 g Certification(s): CE EN 12278, NFPA 2500 General Use, UKCA, XF 494: FZL-H-T 9.5/13 Material(s): Aluminum, stainless steel, nylon Min. rope diameter: 7 mm Max. rope diameter: 13 mm Sheave type: Sealed Ball Bearings Sheave diameter: 38 mm Working Load Limit: 4 x 2 kN = 8 kN Breaking strength: 36 kN Efficiency: 95 %

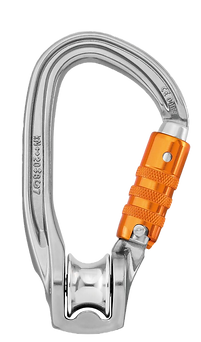

ROLLCLIP Z
Pulley-carabiner that facilitates installation on anchors and devices Description Easier handling: - sheave mounted on sealed ball bearings for excellent efficiency - gate opening on the non-pulley side, to facilitate installation on devices - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place H cross-section of carabiner: - ensures an improved strength-to-weight ratio - protects markings from abrasion Two locking systems available: - TRIACT-LOCK: automatic locking with triple-action gate opening - SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked Specifications Material(s): aluminum Min. rope diameter: 7 mm Max. rope diameter: 13 mm Sheave diameter: 18 mm Maximum working load: 2 x 2 = 4 kN Efficiency: 85 % Major axis strength: 20 kN Minor axis strength: 8 kN Open gate strength: 7 kN
KOOTENAY
Knot-passing pulley Description High clearance rope channel allows passage of joining knots (long raise or Tyrolean traverse on two ropes) Large diameter sheave mounted on sealed ball bearings for excellent efficiency Locking pins on the sheave allow pulley to be used as an anchor Specifications Rope compatibility: 8 to 19 mm Sheave diameter: 76 mm Ball bearings: yes Maximum working load: 5 kN x 2 = 10 kN Weight: 1390 g Height: 26 cm Certification(s): CE EN 12278, UKCA, XF 404: FZL-H-Q 9.5/16
JAG SYSTEM
Haul kit Description Versatile: - allows pickoffs, making a releasable anchor, tensioning a system... - can be coupled with an I'D descender to make a reversible rescue kit to pick off and evacuate a victim Hauling effectiveness: - 4:1 mechanical advantage allows user effort to be divided by 4 - excellent efficiency due to sheaves mounted on sealed ball bearings - deployment possible even when the distance to the anchor is very short, thanks to the extreme compactness of the collapsed system - 8 mm lightweight rope The mechanical advantage guarantees a good grip. Quick and easy to deploy: - kit always ready to use, thanks to the flexible cover that prevents any risk of tangling - haul end immediately identifiable, thanks to the yellow color of the end of the cover - the ends of the cover hold the connectors in position to facilitate clipping Comes with two Am'D TRIACT-LOCK auto-locking carabiners Available in three lengths: 1, 2 and 5 m JAG and JAG TRAXION pulleys also available separately for making long haul systems (e.g. confined space descent/ascent system) Specifications Material(s): aluminum, nylon, polyurethane Rope diameter: 8 mm Certification(s): CE EN 358, UKCA, EAC Sheave type: sealed ball bearings Working load: 6 kN Breaking strength: 16 kN Efficiency: 91 %
MINI
Highly efficient and lightweight Prusik pulley Description Special side plates designed for use with a Prusik friction hitch in progress capture systems Sheave mounted on sealed ball bearings for excellent efficiency Compact and lightweight Specifications Rope compatibility: 7 to 11 mm Sheave diameter: 25 mm Ball bearings: yes Efficiency: 91 % Maximum working load: 2,5 kN x 2 = 5 kN Weight: 80 g Certification(s): CE EN 12278, NFPA 2500 Technical Use, UKCA
